Auto. Press Fit Pin Insertion Machine
Date:2025/4/16 16:36:41 Hits:19

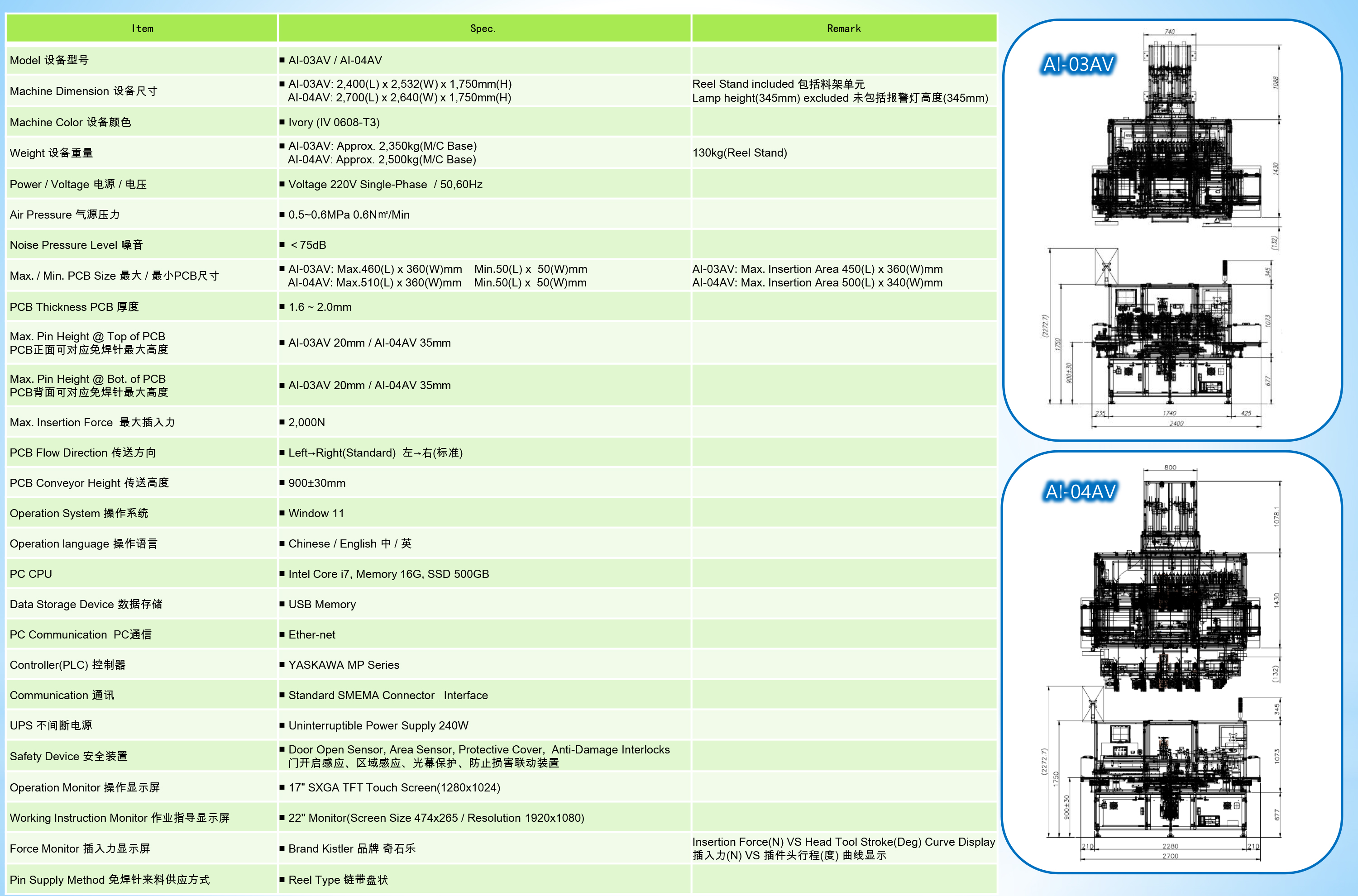

- AI-03AV: Max.3sets High Precision Insertion Head Tools (Max. PCB Size460mmx360mm)
- AI-04AV: Max.4sets High Precision Insertion Head Tools (Max. PCB Size510mmx360mm)
- Core Pats Quick Change Kit Type Design (Feeding/Insertion/Cutting)

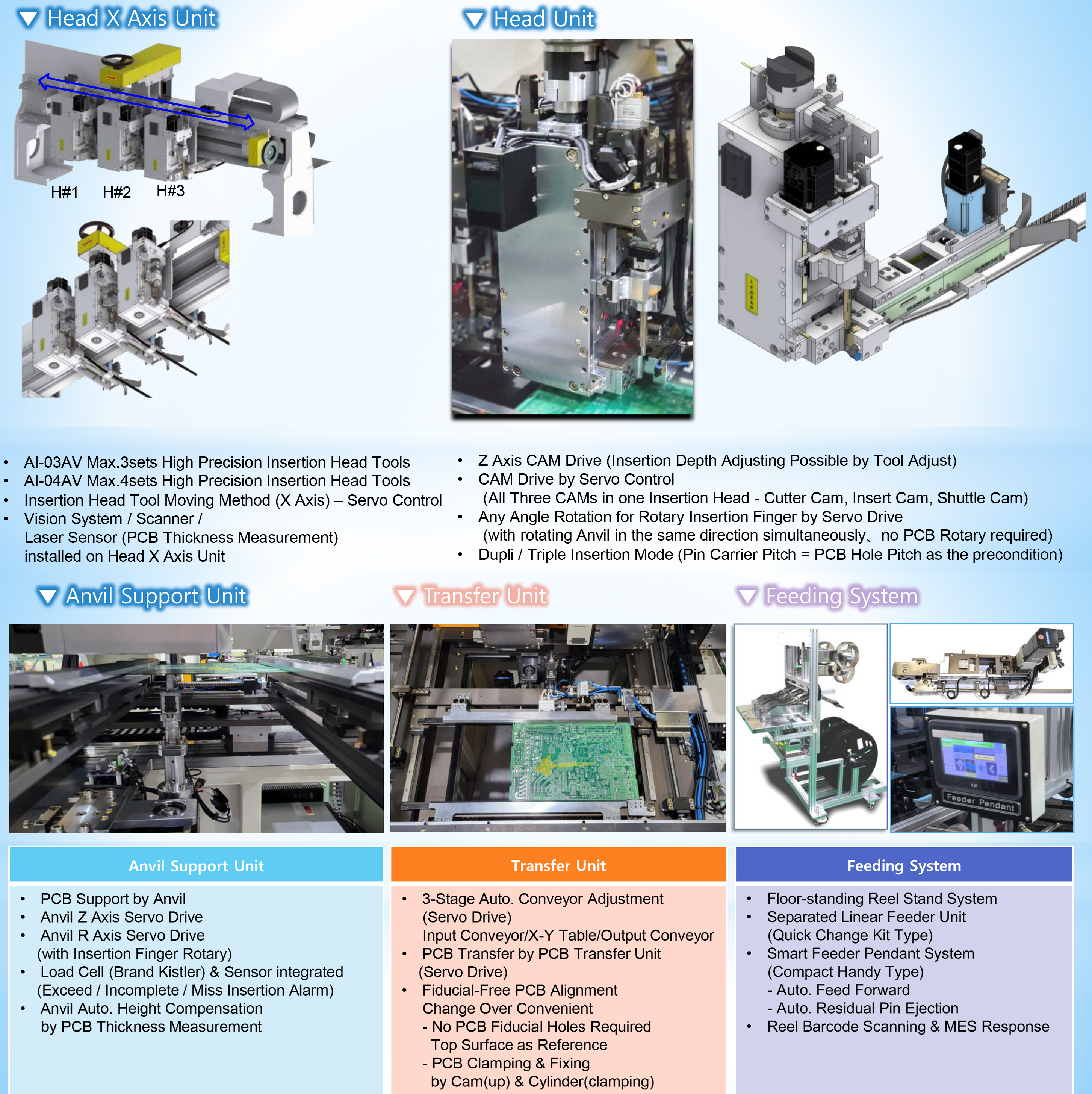

- Effectively and Reliably Support PCB by Anvil Unit
- LoadCell (Brand Kistler) integrated into Anvil Unit for Precision Force Measurement
- Insertion Force Real-Time Monitoring Function (Force Monitor-Brand Kistler)
- Single / Dupli / Triple Insertion Mode
- 3-Stage Auto. Conveyor Adjustment Function
- Fiducial-Free PCB Alignment、Change Over Convenient
- Floor-standing Reel Stand System、Smart Feeder Pendant System (Compact Handy Type)
- Coordinates Input、Programming –Drill Data & Vision System
- Auto. Position Compensation for PCB Actual Hole & Coordinate Position –Vision System
- PCB Barcode Scanning & Reel Barcode Scanning & Data Traceability & MES Response
- PCB Thickness Determination Function、Anvil Auto. Height Compensation
