Intelligent Networking

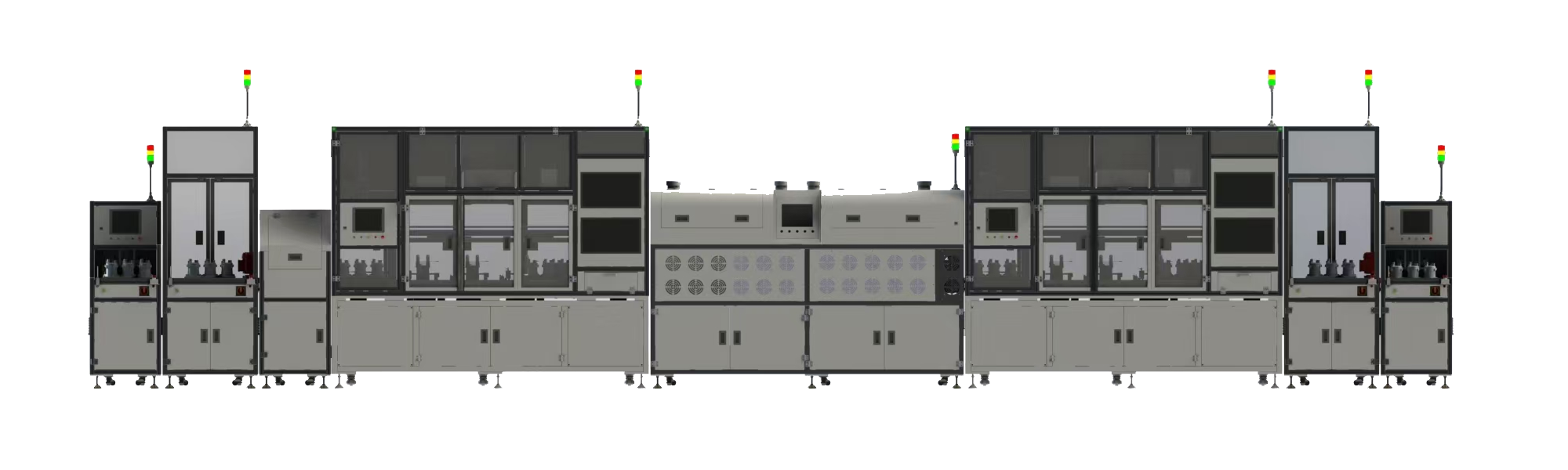

Process flow: Manual loading station ->Tunnel heating furnace ->Docking station->High temperature testing station ->Cooling station ->Normal temperature testingstation ->Manual unloading station. By connecting all testing stations in seriesthrough the up and down circulating conveyor lines, for product heating (≤ 80 ℃), theconveyor tray directly enters the double speed chain heating tunnel furnace

Product traceability: The device is equipped with a barcode scanner to identify the QRcode on the components or products.

Provide production line level MES to achieve data exchange, traceability, reporting, and production process management (including defective product management) of theproduction line.

Unmanned operating system
It can be equipped with automatic plate loading machine, In Line ICT / FCT is equipped with automatic code scanning function, automatic pressure testing;

Quality identification system
Functoon Buffer loaders separate the products into good and defective ones, and the good ones are tested in double-layer FCT.Equipped with un-loader ON[OK] to separate and collect good and defective products, PCBA can be fully automated

Multiple system test modules
In Line ICT double-layer FCT equipment is equipped with elevator itself. Two sets of test systems work simultaneously,which can provide twice the efficiency

DIP inserts, welding, testing, dispensing/three-proof, split plate,automatic unloading, automatic sorting of good and bad products；

Fully automatic lnline design, no manual operation, test speed 30% faster than manual, unmanned operation；

Support product traceability,rapid line change, through the combination of man and machine, with the help of vehicles to achieve personnel reduction, to improve production efficiency and product quality

Suitable for general PCBA product test with process

It is suitable for PCBA FCT and EOL test.
